Product Keywords:
Application: machining, cleaning, spray, etc
Filtration efficiency: ≥99%
Filtration principle: multistage mechanical filtration
Maintenance period: 2000-4000 hours
Maintenance: Clean and replace the filter material
Cleaning method: neutral cleaning solution or weak alkaline cleaning solution soaked in warm water
Installation: Side installation of the device
Optional accessories: None
Maximum air volume: 20000m³/h
Capture object: oily, water-soluble coolant oil mist
Exhaust gas temperature: <45℃
Product principle:

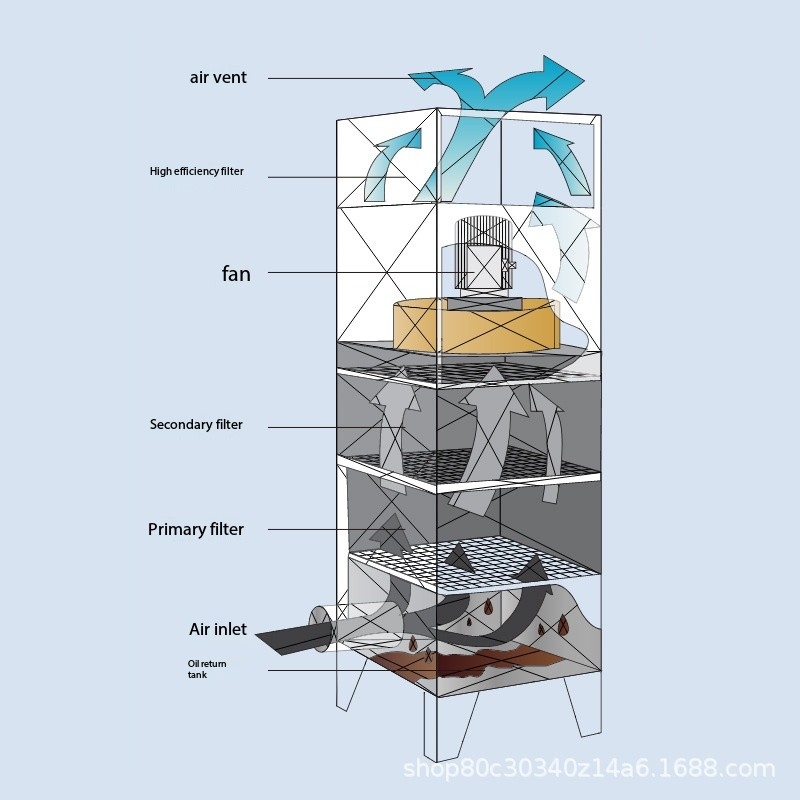

The series adopts 3 and filter, the oil mist enters the first-level self-cleaning washable filter, filters the large particle oil mist, and then enters the high efficiency oil mist filter, filters 0.3μm small oil mist particles, and finally to the HEPA high efficiency filter, directly discharged; The filtration efficiency can reach more than 99.9%.
The biggest advantage of this product is that it can easily achieve efficient filtration of three oil mist categories by simply changing the filter material - oil from water-soluble cold liquid, oil mist from cutting oil, and smoke from mechanical processing.
Technical parameters:
Equipment model
|
MFP-10
|
MFP-20
|
MFP-30
|
MFP-40
|
MFP-50
|
MFP-80
|
MFP-120
|
Power source
|
Three-phase 380V/220V/50Hz
|
Treated air volume(m³/h)
|
1000
|
2000
|
3000
|
4000
|
6000
|
8000
|
12000
|
Power(KW)
|
0.75
|
2.2
|
3
|
4
|
5.5
|
7.5
|
11
|
Secondary filtration
|
Stainless steel gas liquid filter
|
Secondary filtration
|
Stainless steel gas liquid filter
|
Three-stage filtration
|
HEPA
|
Noise(dB)
|
≤75
|
Weight(KG)
|
150
|
200
|
280
|
330
|
380
|
490
|
580
|
MaxWeight(KG)imum suction temperature (℃)
|
＜45
|
Equipment size(L*W*H)mm
|
700*700*1800
|
1000*700*2000
|
1000*800*2000
|
1200*800*2000
|
1500*1000*2000
|
1500*1000*2000
|
1500*1100*2300
|
Inlet and outlet (A)
|
150
|
200
|
250
|
300
|
350
|
400
|
500
|
