Application: Fastener cold heading machine, heat treatment, plastic granulation, etc
Filtration efficiency: ≥99%
Filtration principle: multistage filtration + high voltage electrostatic * Maintenance cycle: 200-600 hours
Maintenance: Clean electric field and filter
Cleaning method: neutral cleaning solution or weak alkaline cleaning solution soaked in warm water

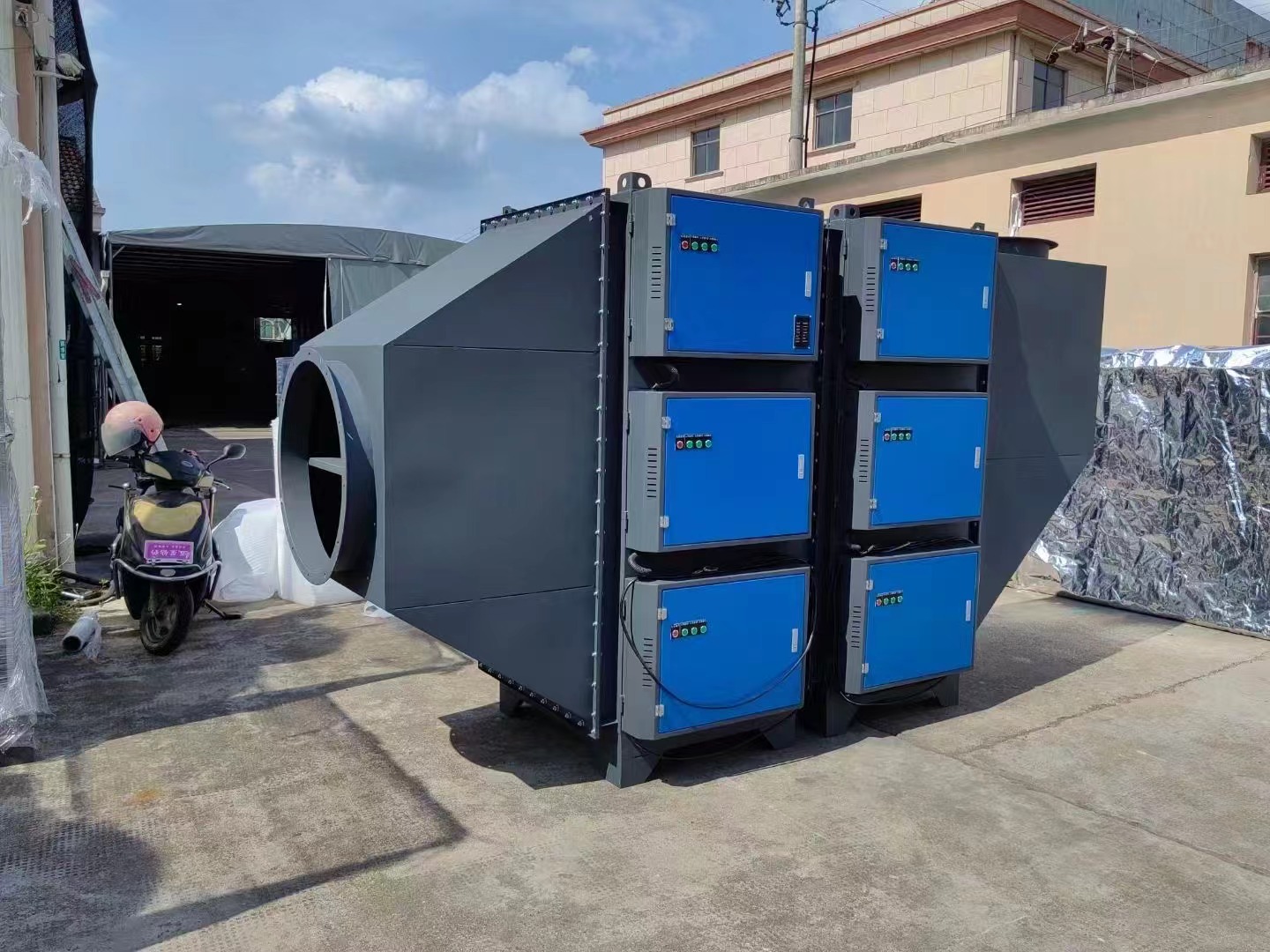

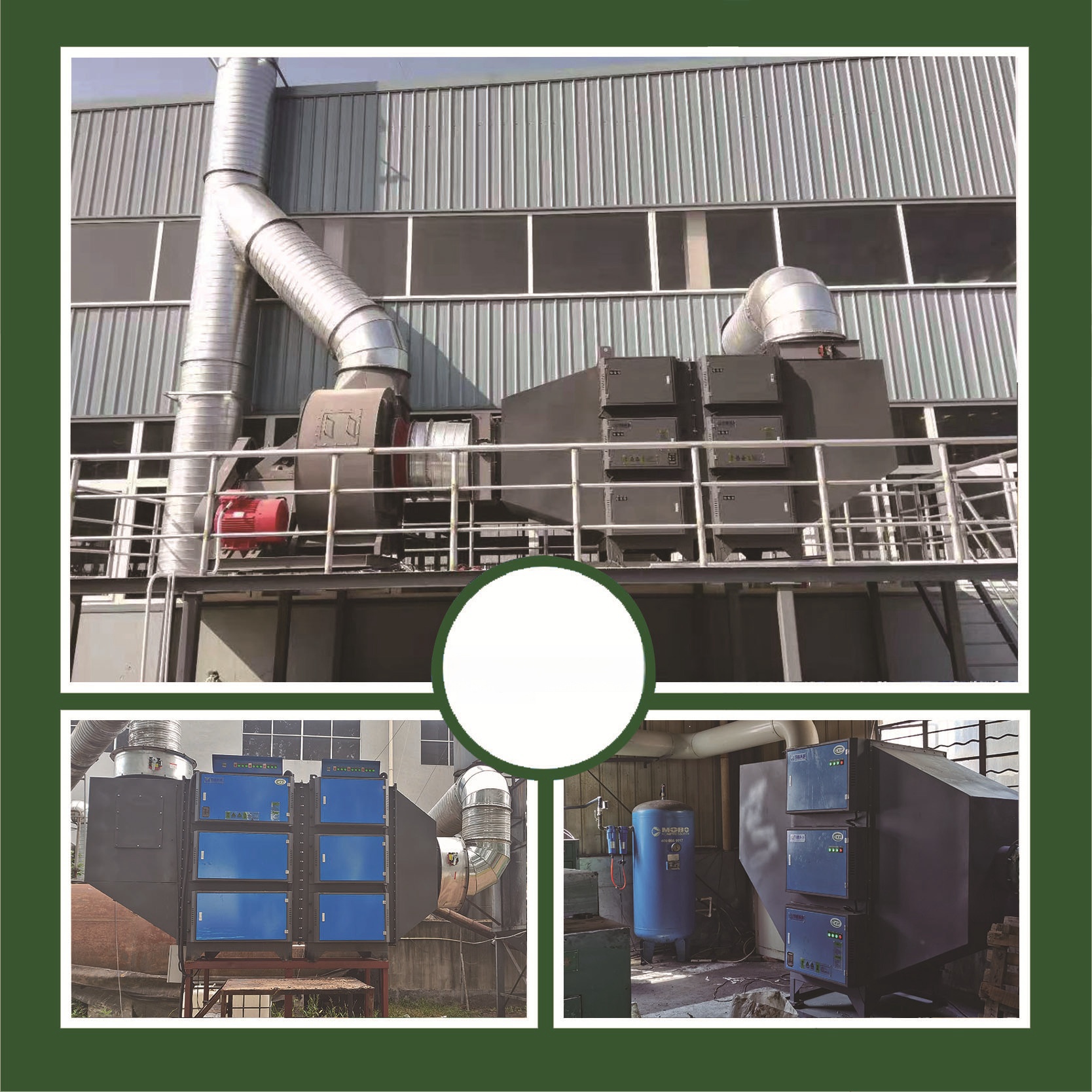

Installation mode: indoor/outdoor floor installation
Optional accessories: Fan
Maximum air volume: 25000m3/h
Capture object: pure oil coolant oil mist
Exhaust gas temperature: <80℃
Product principle:
This product uses the dual function of mechanical purification and electrostatic purification. The dirty air first enters the primary device, the purification and rectification room. Gravity and inertia purification technology is adopted. The special structure in the room can physically separate the large-particle size pollutants step by step and balance the rectification. The remaining small particle size pollutants enter the secondary device - high voltage electrostatic field, electrostatic field part of two stages, the first stage is the ionizer, the strong electric field makes the particles charged, become charged particles, these charged particles reach the second dust collector immediately adsorbed by the collection electrode. Finally, clean air is discharged outside through the screen grating.
The corona field of the ECOTE electrostatic air purifier has a potential difference between 10-15 kV, so that non-conductive gas molecules can be decomposed or electron attached into free ions. When the air flow passes through the dust-collecting electric field, the particles are charged by ion impact and move towards the collection electrode with opposite electrical properties. In other words, the first step of the collection mechanism ionizes the gas, and the second step charges the particles in the stream. The third step is to make the particles hit the collecting electrode plate and be collected.In theory, the power required to separate a charged particle is proportional to the product of the charge carried by the particle and the strength of the collected electric field. The size of this power, in terms of the specific gravity of 1 to 1 micron particles, is 300 times the heavy gravity, which is the reason for the high efficiency and high efficiency of the E electrostatic fume purifier.
Technical parameter：
| Equipment model: | EDP4-1 | EDP4-2 | EDP8-1 | EDP8-2 | EDP8-3 | EDP12-1 | EDP12-2 | EDP12-3 | |
| Power source |
Three phase 380v/50hz |
||||||||
| Treated air volume(m³/h) | 2000 | 4000 | 4000 | 8000 | 12000 | 6000 | 12000 | 20000 | |
| Power(KW) | 0.2 | 0.4 | 0.4 | 0.8 | 1.2 | 0.4 | 0.8 | 1.2 | |
| Wind pressure(Pa) | 500 | 500 | 500 | / | / | / | / | / | |
| Electric field | quantity | 4 | 8 | 8 | 16 | 24 | 12 | 24 | 36 |
| material |
Aluminum plate /304L |
||||||||
| Clean |
Ultrasonic cleaning machine/weak alkali warm water soaking/drying or drying/special cleaning solution |
||||||||
| Noise(dB) |
0 |
||||||||
| Weight(Kg) | 70 | 150 | 150 | 150 | 300 | 200 | 400 | 600 | |
| Maximum suction temperature(℃） |
＜80 |
||||||||
| Maximum filtration flow rate(m/s) |
2 |
||||||||
| Equipment size(L*W*H)mm | 1195*605*620 | 1195*650*1180 | 1195*1090*620 | 1195*1090*1180 | 1195*1090*1740 | 1195*1575*620 | 1195*1575*1180 | 1195*1575*1740 | |
|
Inlet and outlet diameter |
200 | 300 | 300 | 400 | 500 | 350 | 500 | 600 | |
