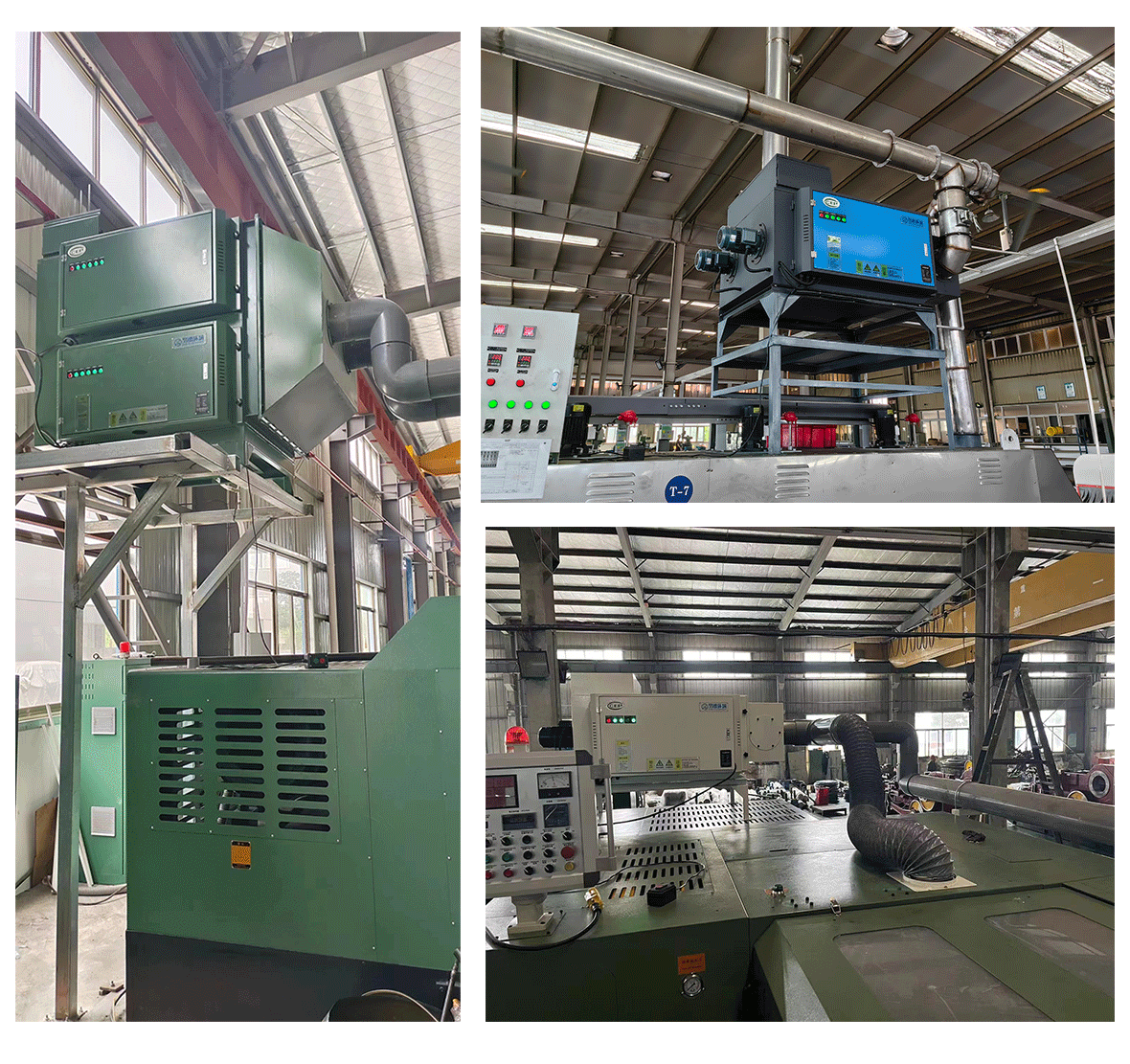

Application: Fastener cold heading machine, heat treatment, etc
Filtration efficiency: ≥99%
Filtration principle: Primary filtration + high voltage electrostatic + high efficiency filtration maintenance cycle: 200-600 hours
Maintenance: Clean electric field and filter
Cleaning method: neutral cleaning solution or weak alkaline cleaning solution soaked in warm water
Installation mode: Device top or support installation
Optional accessory: Pipe hood holder
Maximum air volume: 8000m³/h
Capture object: pure oil coolant oil mist
Exhaust gas temperature: <80℃

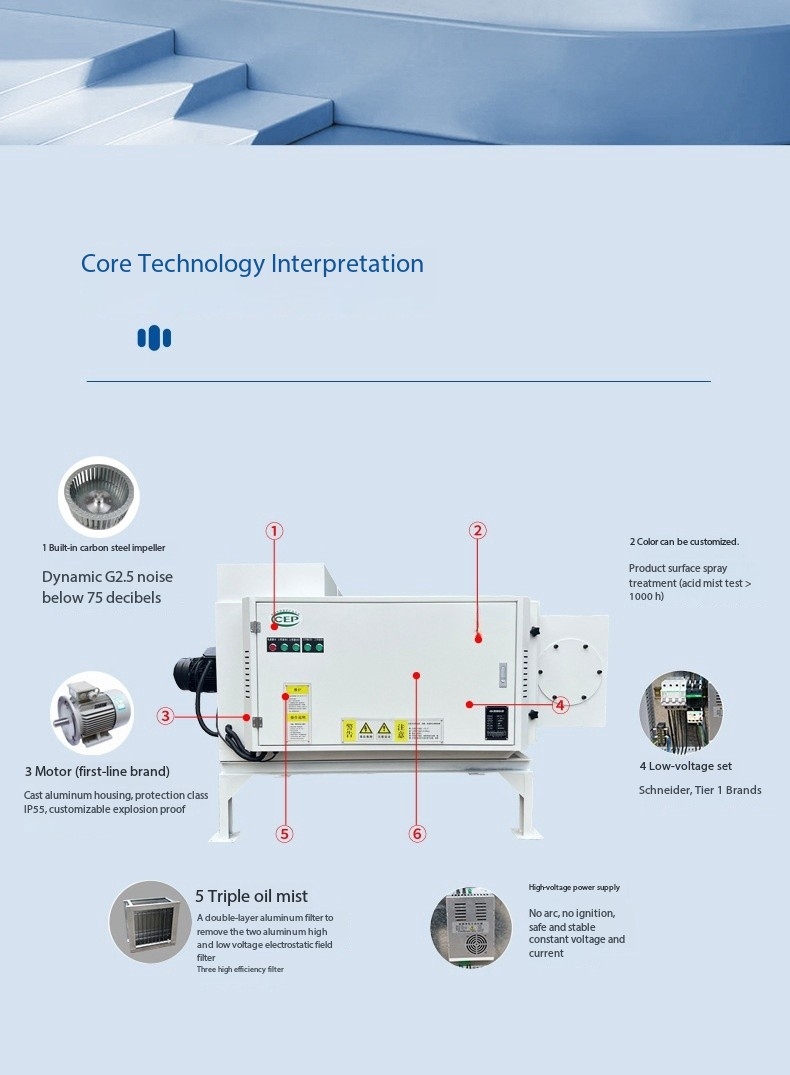

Product principle:

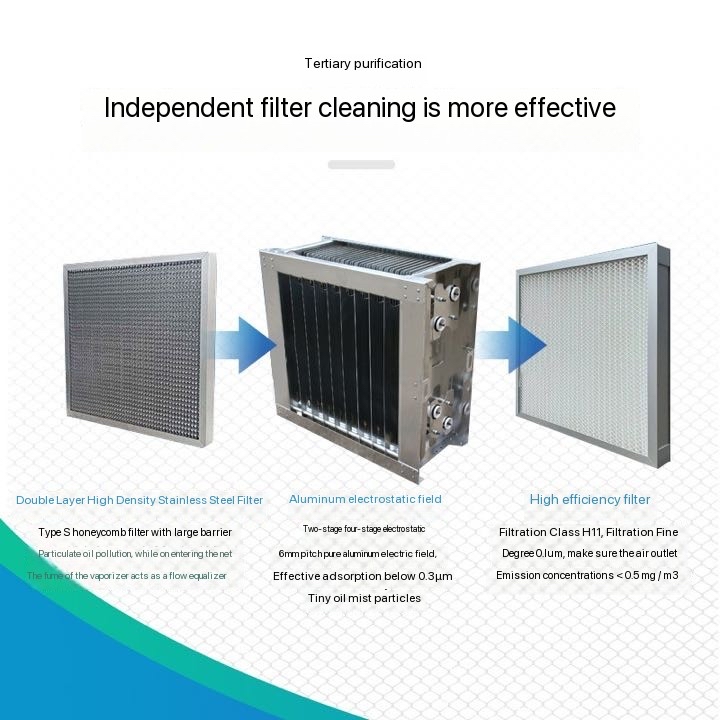

This product uses the dual function of mechanical purification and electrostatic purification. The dirty air first enters the primary device, the purification and rectification room. Gravity and inertia purification technology is adopted. The special structure in the room can physically separate the large-particle size pollutants step by step and balance the rectification. The remaining small particle size pollutants enter the secondary device - high voltage electrostatic field, electrostatic field part of two stages, the first stage is the ionizer, the strong electric field makes the particles charged, become charged particles, these charged particles reach the second dust collector immediately adsorbed by the collection electrode. Finally through the screen grating, clean air

Discharge to the outside.
The corona field of the ECOTE electrostatic air purifier has a potential difference between 10-15 kV, so that non-conductive gas molecules can be decomposed or electron attached into free ions. When the air flow passes through the dust-collecting electric field, the particles are charged by ion impact and move towards the collection electrode with opposite electrical properties. In other words, the first step of the collection mechanism ionizes the gas, and the second step charges the particles in the stream. The third step is to make the particles hit the collecting electrode plate and be collected.

In theory, the power required to separate a charged particle is proportional to the product of the charge carried by the particle and the strength of the collected electric field. The size of this power, in terms of the specific gravity of 1 to 1 micron particles, is 300 times the heavy gravity, which is the reason for the high efficiency and high efficiency of the ECOTE electrostatic lampblack purifier.

Technical parameter:

Equipment model:		EMP-101	EMP-201	EMP-202	EMP402
Power source		Three phase 380v/50hz
Treated air volume(m³/h)		1500	2000	3500	6000
Power(KW)		0.75	1.1	1.1*2	1.5*2
Wind pressure(Pa)		700	700	700	700
Electric field	Quantity	2	4	8	12
	Material	Aluminum plate /304L
	Clean	Ultrasonic cleaning machine/weak alkali warm water soaking/drying or drying/special cleaning solution
	Noise(dB)	65	65	70	70
	Weight(Kg)	80	120	180	250
	Maximum suction temperature(℃）	＜80
	Maximum filtration flow rate(m/s)	2
	Equipment size(L*W*H)mm	1300*625*750	1650*625*750	1650*1105*750	1650*1585*750
