Application: machining, quenching, heat treatment, etc
Filtration efficiency: ≥99%
Filter principle: static electricity
* Maintenance cycle: 200-600 hours
Maintenance: Clean electric field and filter
Cleaning method: neutral cleaning solution or weak alkaline cleaning solution soaked in warm water

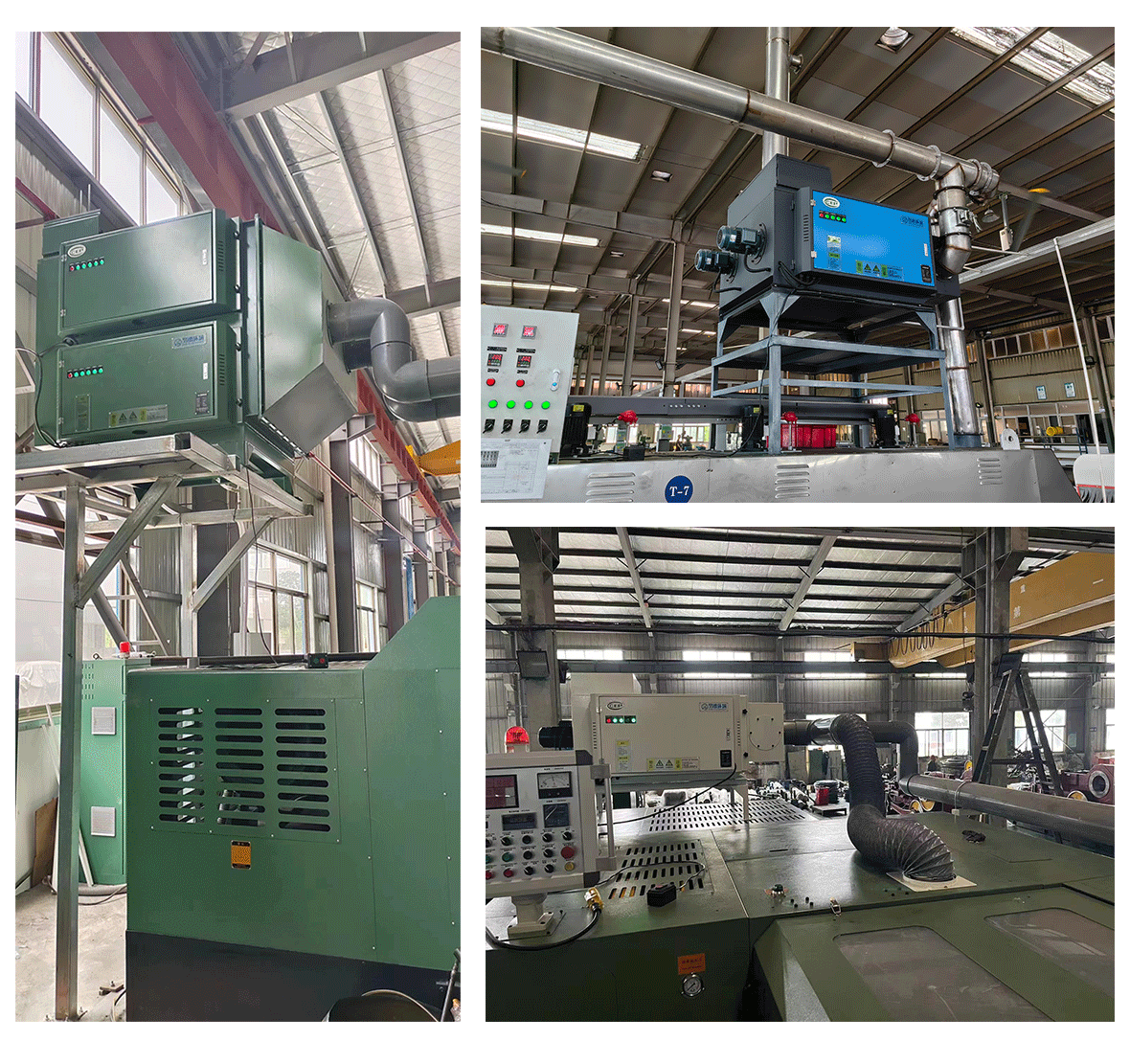

Installation: Top or side installation of the device
Optional accessories: None
Maximum air volume: 1500m³/h
Capture object: pure oil-based coolant fumes
Exhaust gas temperature: <80℃
Product principle:

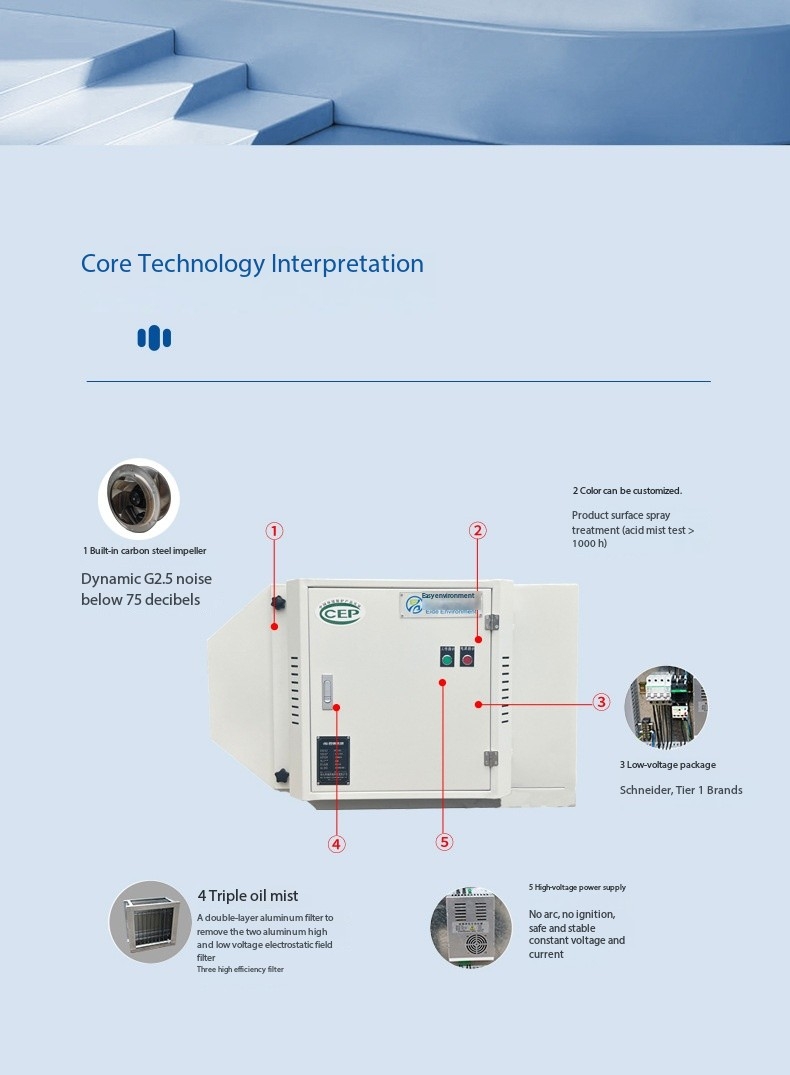

Using the dual function of mechanical purification and electrostatic purification, the air with oil first enters the primary device - purification and rectification room, using gravity and inertia purification technology, the special structure of the room gradually carries out physical separation of large-particle size pollutants, and balanced rectification. The remaining small particle size pollutants enter the secondary device - high voltage electrostatic field, electrostatic field part of two stages, the first stage is the ionizer, the strong electric field makes the particles charged, become charged particles, these charged particles reach the second dust collector immediately adsorbed by the collection electrode. Finally, clean air is discharged through the screen grid.
Technical parameters:
| Equipment model | EP-300 | EP-500 | EP-1000 | EP-1500 | |
| Power source |
AC 220V/50Hz |
||||
| Treated air volume(m³/h) | 500 | 800 | 1000 | 1500 | |
| Power(Kw) | 0.13 | 0.35 | 0.35 | 0.55 | |
| Wind pressure(Pa) | 700 | 700 | 700 | 700 | |
|
Electric field |
quantity | 1 | 2 | 3 | 4 |
| material |
Aluminum plate |
||||
| clean |
Ultrasonic cleaning machine/weak alkali warm water soaking/drying or drying/special cleaning solution |
||||
|
Suction diameter |
105 | 155 | 155 | 195 | |
| Noise(dB) | 65 | 65 | 70 | 70 | |
| Weight(Kg) | 40 | 60 | 80 | 100 | |
| Maximum suction temperature(℃） |
＜80 |
||||
| Maximum filtration flow rate(m/s) |
2 |
||||
| Equipment size(L*W*H)mm | 760*480*480 | 1050*625*735 | 1250*625*735 | 1450*625*735 | |
